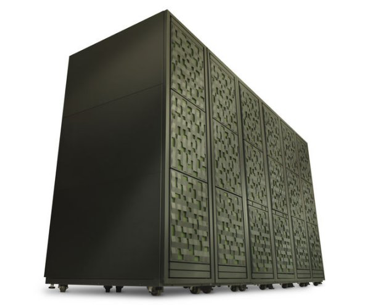

VSP Virtual Storage Platform G


Virtual Storage Platform is the brand name for a Hitachi Data Systems line of enterprise storage systems.
Model numbers include G200, G400, G600, G800, and G1000.
Hitachi Virtual Storage Platform, also known as VSP was first introduced in September, 2010.
Hitachi Virtual Storage Platform G serie, also known as VSP G was first introduced in April, 2014.
This storage platform builds on the design of Universal Storage Platform V, originally released in 2007.
At the heart of the system is the HiStar E-Network, a fifth-generation network crossbar switch matrix.
This storage platform is made up of different technologies than USP and USP V.
The connectivity to back-end disks is via 6Gbit/s SAS links instead of 4Gbit/s Fibre Channel loop.
The internal processors are now Intel multi-core processors, and in addition to 3.5-inch drives support has been added for 2.5 inch small-form factor HDDs. The VSP and VSP G supports SSD, SAS and SATA drives.

Notable features include:

  • The ability to scale in 3 dimensions (3D Scaling) which allows for infrastructure growth on three axes.
    • Scale up to meet increasing demands by dynamically adding processors, connectivity and capacity in a single unit. This enables tuning the configuration for optimal performance for both open systems and mainframe environments.
    • Scale out to meet demands by dynamically combining multiple units into a single logical system with shared resources. Support increased needs in virtualized server environments and ensure safe multitenancy and quality of service through partitioning of cache and ports.
    • Scale deep to extend the advanced functions of Hitachi Virtual Storage Platform to multivendor storage through virtualization. Offload less-critical data to external tiers in order to optimize the availability of the tier one resources.
  • Supports automated storage tiering, known as Dynamic Tiering, to automate the movement of data between tiers to optimize performance.
  • Front to back cooling airflow for more efficient cooling
  • Improved capacity per square foot and lower power consumption compared to the USP V.
  • Enables virtualization of external SAN storage from Hitachi and other vendors into one pool
  • Supports online local and distance replication and migration of data nondisruptively internally and between heterogeneous storage, without interrupting application I/O through use of products such as Tiered Storage Manager, ShadowImage, TrueCopy and Universal Replicator.
  • Single image global cache accessible across all virtual storage directors for maximum performance.
  • Automated wide-striping of data, which allows pool balancing and lets volume grow or shrink dynamically.
  • The system can scale between one and six 19-inch rack cabinets. It can hold a maximum of 2,048 SAS high-density 2.5-inch drives for 1.2 petabytes of capacity, or 1,280 3.5-inch SATA drives for a maximum capacity of 2.5 petabytes.
  • Supports thin provisioning and storage reclamation on internal and external virtualized storage
  • Provides encryption, WORM and data shredding services, data resilience and business continuity services and content management services.

MICS Partner of ;

Buy / Sell

Check the correspondence between distributors


Remote maintenance Our exclusive remote maintenance solution performs real-time monitoring of your equipment and MICS alert when an incident occurs

Trained and certified technical staff MICS highly qualified and certified technical staff can provide support services for equipment maintenance and repair services for the Hitachi Universal Storage Platform USP V. Our contracts and maintenance services typically cost 50-70% less than what charge the original manufacturers.
